Leaf spring for Kverneland type plough with 5 or 7 leaves. Sold pre-assembled. Individual leaves also available as well as bolts. Important to follow assembly recommendations so that the leaf spring performs its function of absorbing impacts and protecting the plough body correctly.
Plough leaf springs, Kverneland model
The main purpose of plough leaf springs is to absorb impacts and protect the plough bodies when they encounter obstacles in the ground, such as stones or roots. This suspension system allows the plough to flex upon impact and then return to its original position without damage, avoiding interruptions and reducing wear.
Additionally, leaf springs contribute to more uniform and stable tillage, as they maintain constant pressure on the soil, improving penetration and the quality of soil turning. Their design also helps to minimise the force required for draught, facilitating the tractor's work and optimising energy consumption.
Bellota leaf spring for plough
At Bellota, plough leaf springs are manufactured with the following characteristics:
- Leaves made from special steel with high elasticity and ability to recover their initial geometry.
- Each leaf undergoes a specific integral heat treatment that provides optimal characteristics to each leaf.
- Each leaf is shot-peened and individually painted prior to assembly of the unit.
- Epoxy paint with UVA protection

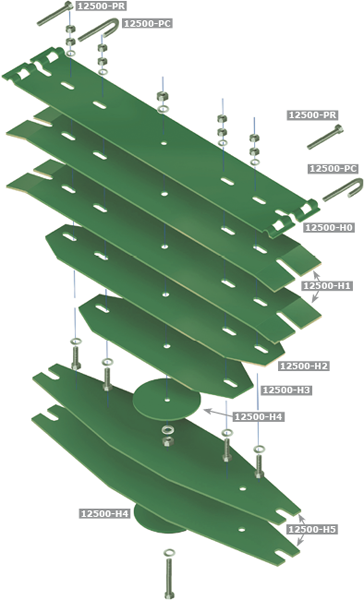

At Bellota we offer pre-assembled the 5-leaf spring adaptable to Kverneland 050706 and the 7-leaf spring adaptable to Kverneland 060703. Individual leaves and pins are also available. The number of leaves per spring will depend on the ground characteristics.
Please enquire about custom leaf spring development.
Assembly recommendations
The initial assembly distance of the plough leaf spring, when flexed, is 70 cm, that is, the distance between the pin axes.
