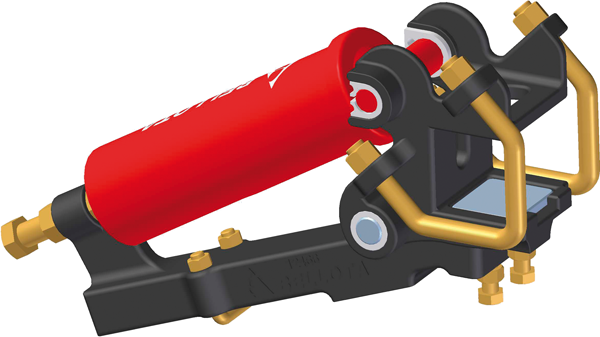

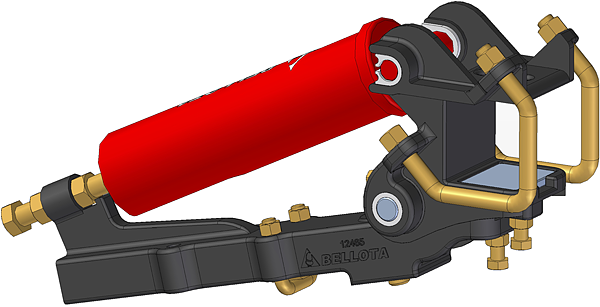

Shock Absorber Spring for Chisel and Semi-Chisel Optimize the connection between the frame and the chisel tine with our high-resistance shock absorber spring. Designed for 100x100 mm and 80x80 mm frames, it comes pre-assembled with adaptable couplings for tines of different thicknesses. Bushings are protected with nylon for greater durability. Easy and secure assembly.
Cultivator arm clamps
Achieve a perfect union between the frame and the chisel tine with our chisel clamp with shock-absorbing spring, designed for 100x100 and 80x80 frames. This chisel clamp assembly ensures efficient cushioning and greater stability in agricultural work.
Advantages of Bellota chisel clamps:
- Maximum safety: position system and anti-rotation nuts prevent bolt loosening in the field.
- Minimum maintenance: bushings protected with nylon, eliminating the need for greasing.
- Total versatility: possibility of fitting stronger and longer springs according to requirements.
- Quick and easy assembly: no component disassembly required for installation or removal.
- Ideal for dry and hard soils: fitting a complementary spring is recommended for better impact absorption.
- Maximum recommended depth: 35 cm for semi-chisel and 45 cm for chisel.
The chisel clamp is designed to connect the chisel tine to the frame safely and efficiently. Its main function is to absorb impacts and vibrations, improving stability and equipment performance on demanding terrain.
We also have a special chisel clamp for vineyards, more compact for a maximum recommended depth of 30 cm.
Power required
The recommended power is indicative and will depend on soil conditions, the machine, etc. But as a guide, the power required per 80x80 chisel clamp is between 8 and 12 HP, whilst for 100x100 chisel clamp it is between 10 and 15 HP.
